Scope
This schedule specifies the requirements for the VeriCure® curing monitoring system as supplied by Vortex Technology Group, LLC (including its affiliate Vortex Europe GmbH) for continuous monitoring of curing temperature during cured-in-place pipe (CIPP) liner installation.
Product Description
VeriCure® is a curing monitoring system (CMS), built around fibre optic Distributed Temperature Sensing (DTS) technology, designed to improve the CIPP curing process. The VeriCure® optical fibre cable typically runs along the invert of the host pipe (or is attached to the crown in pipes 60 inches [1,524 mm] diameter or greater). Note that the sensor cable can be installed before (for inversion) or during (for pull-in-place) lining installation. Once the CIPP lining has been installed and inflated inside the host pipe, the curing process is initiated. With the optical fibre cable connected to the CMS control unit, the VeriCure® software continuously records the temperature profile along the length of the curing lining. It is compatible with circular pipes with internal diameters between 150mm and 2,000mm.
Full details can be found in the Assessment Schedule.

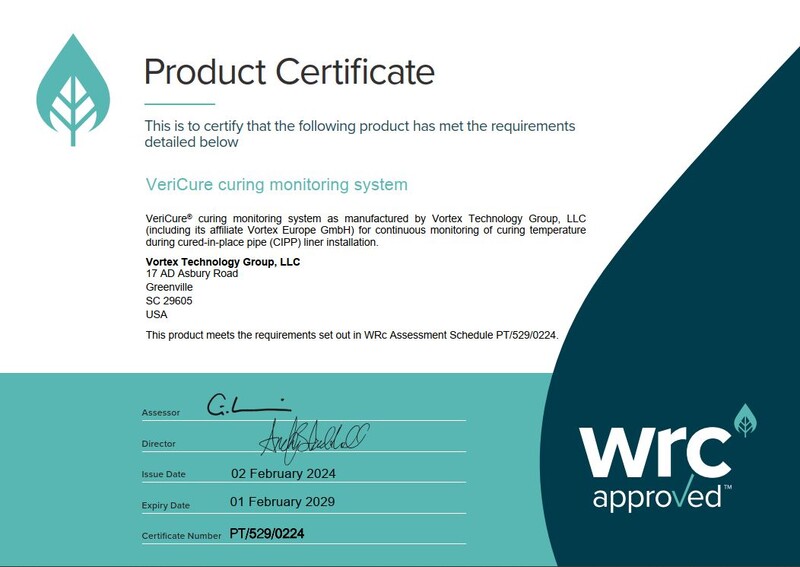

Click here to enlarge certificate.
